SW8FDYE-B30

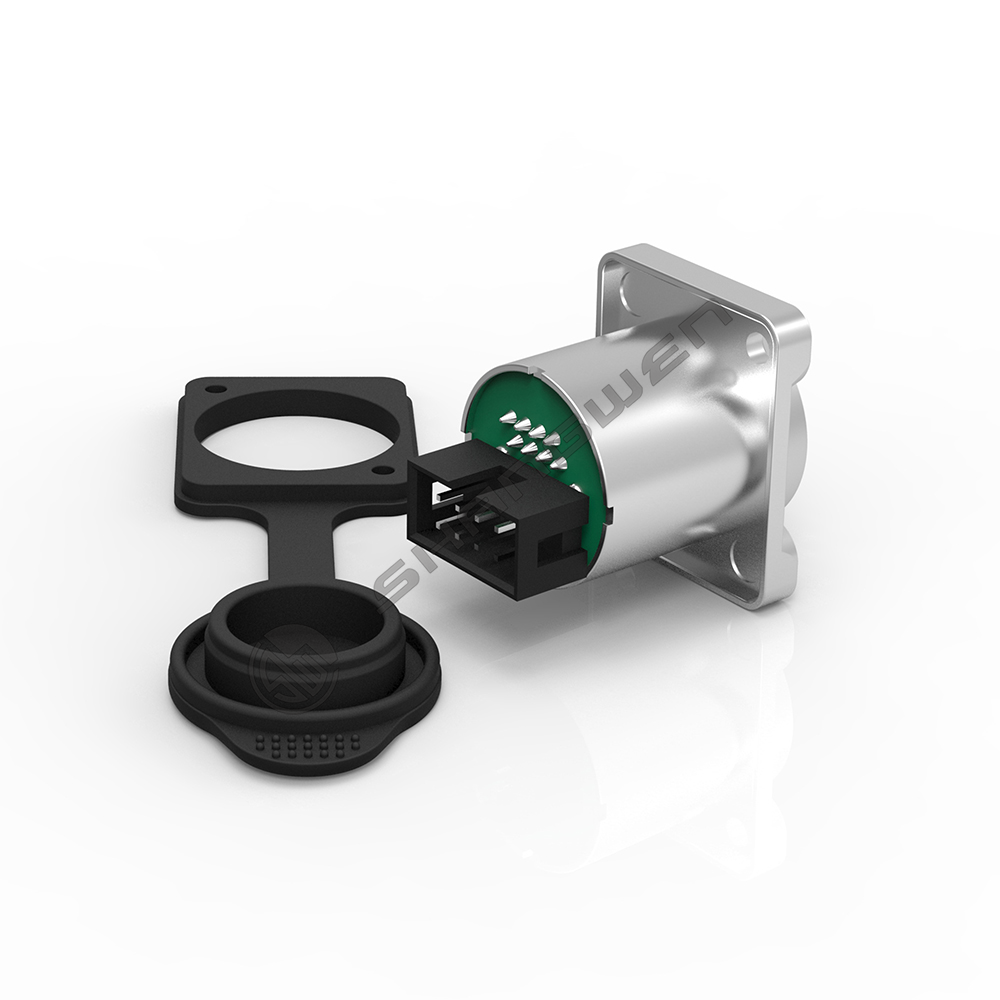

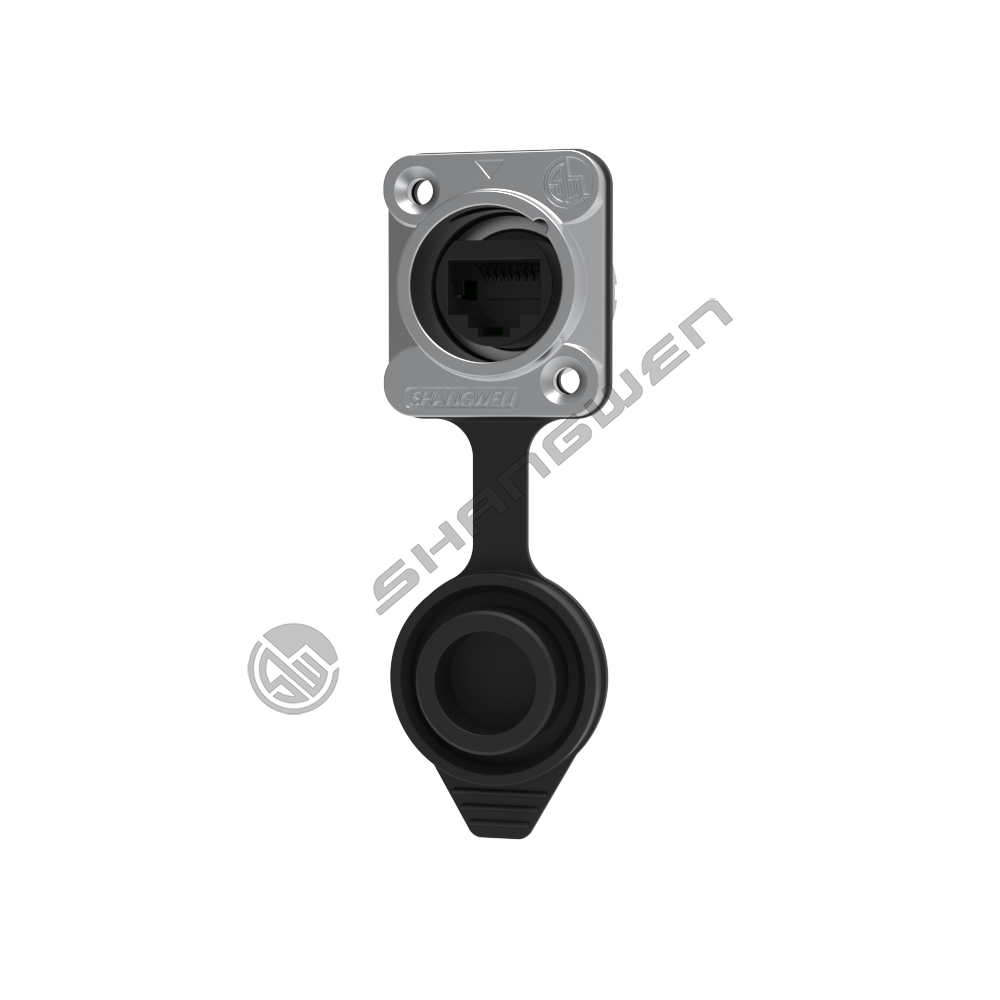

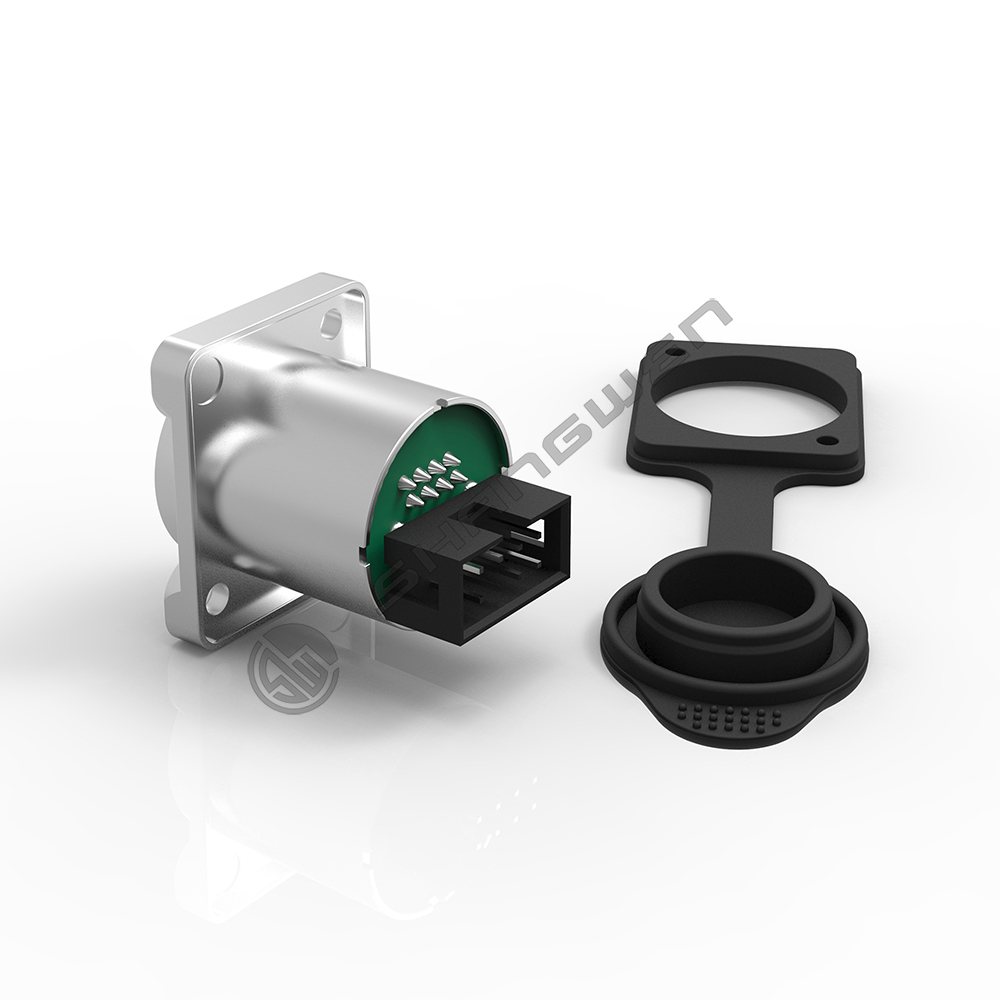

Outdoor RJ45 connector-upgrade snap-in

Summary: A secure locking connection based on RJ45, which is widely used in professional audio, video, lighting and other network equipment, this socket is designed to be standard in line with industrial equipment panel mounting style, this D-shaped size design is perfect In conjunction with panel mounting, this pass-through design of the RJ45 has both a metal base plate and a locking system, including panel mounting screws.


Features and advantages:

• Compatible with SW8MC-03 or any standard RJ45 connector, one-handed operation, one-key plugging and unplugging

• D-style with unified metal flange, standard D-style mounting dimensions

• Receptacles are Class D according to TIA/EIA568B and ISO/IEC11801 standards

• D style, can be installed from the front or rear of the panel

• All sockets are equipped with waterproof gaskets. When installed with gaskets, the protection level can reach IP65, which fully meets the lasting and stable signal transmission in harsh outdoor conditions.

• All-metal housing with waterproof rear

• The back end can be flexibly modified according to actual needs

• The transmission level reaches CAT5e, and is compatible with the transmission level below 5e

• With shielding function
