Socapex 19-pin connectors
  • Socapex 19-pin connectors
  • Socapex 19-pin connectors
  • Socapex 19-pin connectors
Socapex 19-pin connectors
Industrial connectors

This 19-pin connector connector is designed for stable coupling and fast wiring. Indestructible, super  secure and easy to handle. Compatible with Socapex SL 419 series. Certified by the German TUV. The  unit is fully IP67 waterproof when mated. Electrical safety and compliance are ensured by the internal  insulation of the housing, obtained by means of a safety insulating sleeve to prevent electric shock, as  well as a "first on, then off" ground contact. The locking ring and back case are designed for easy han- dling. Our company's SLY 19 cores are perfectly compatible with the standard Socapex SL 419 series  and are made of a machined aluminum alloy with a thick-walled structure, which is very strong and very resistant to wear with black lacquer or anodized finish. All SLY connectors are equipped with an  anti-rotation design to prevent rotation of the insulating insert within their housing. The anti-rotation  system features 4 large keys + 4 small keys that physically move 45 degrees from each other and inter- lock with as many keys as possible on the metal case. The system ensures that the interior is actively  locked down, putting an end to a long-standing industry problem.

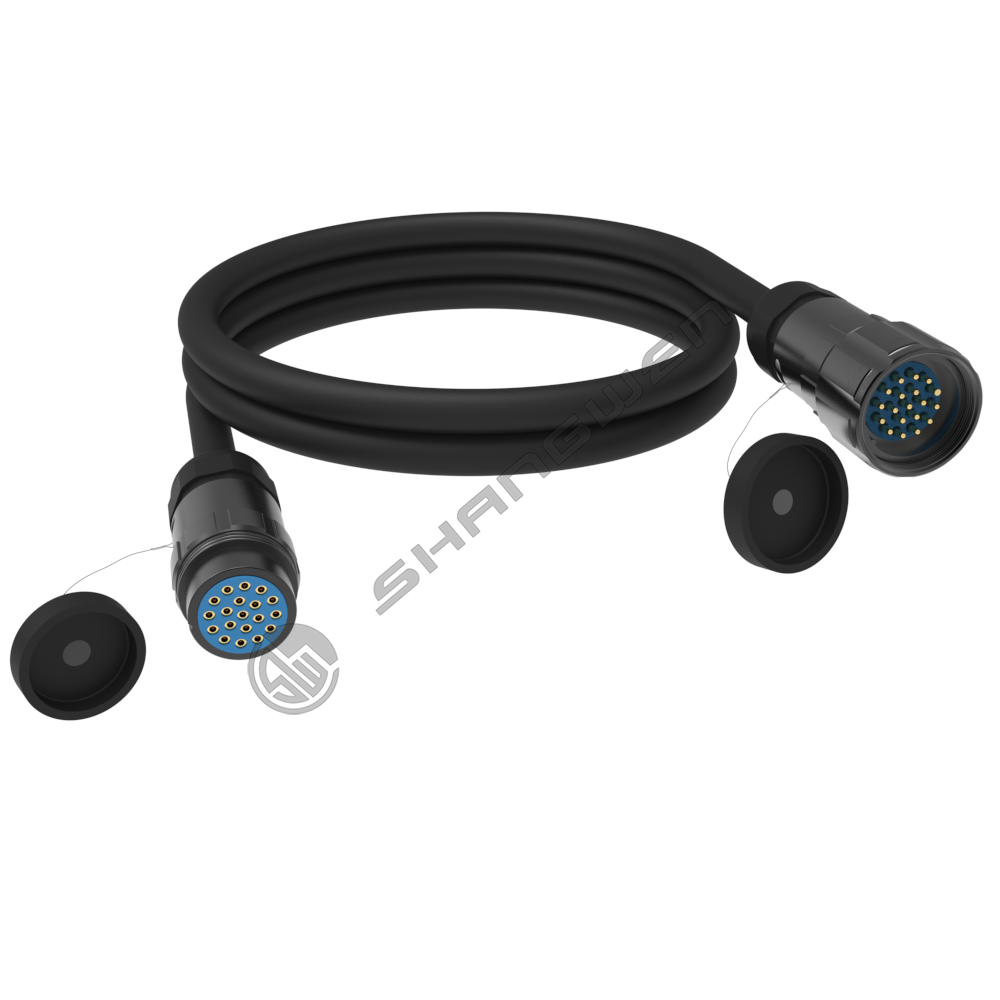

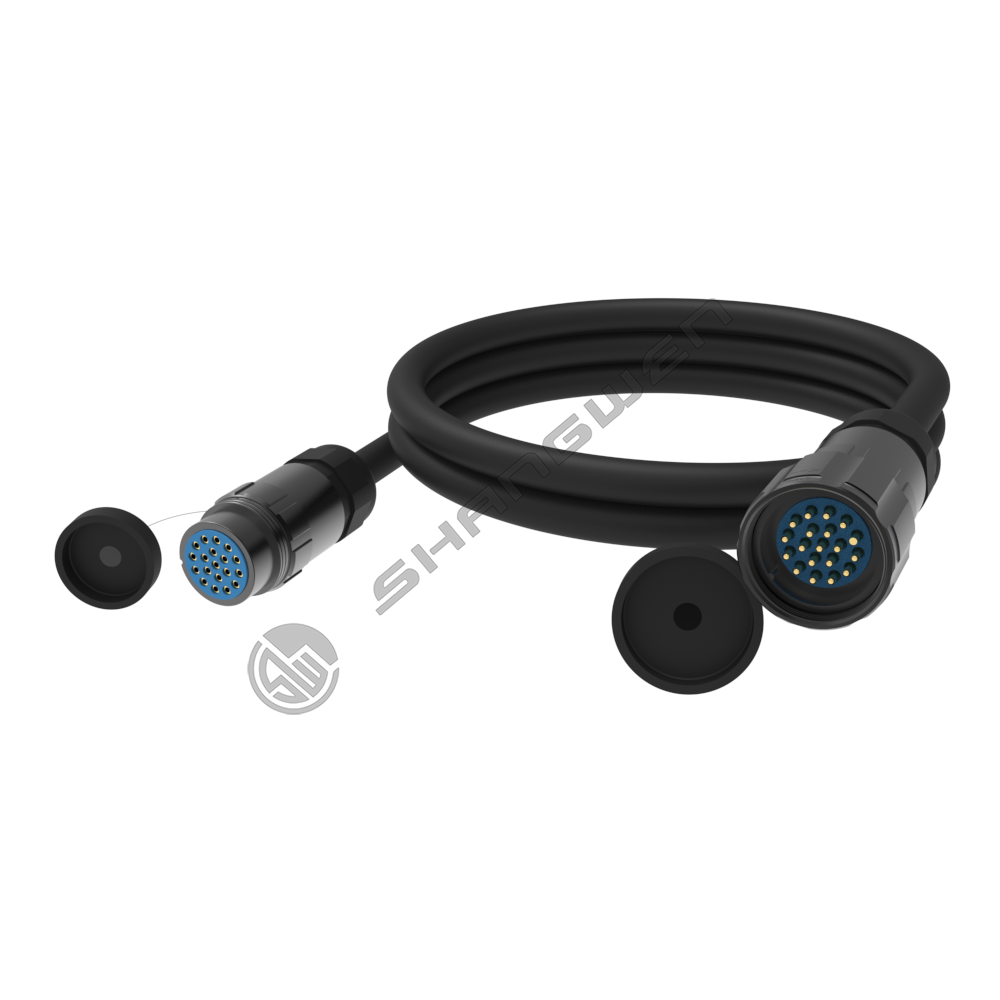

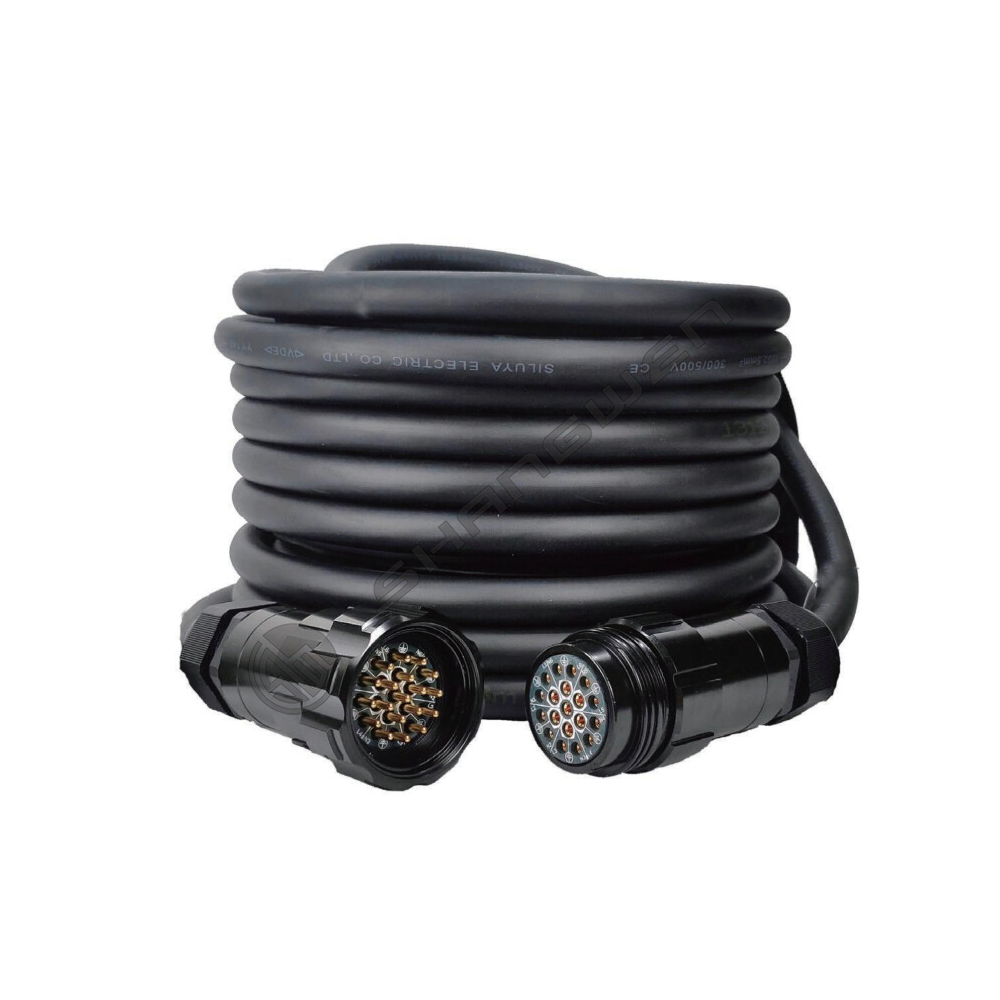

The customized 19-core power supply finished wire is specially designed for the performance field, the conductor is made of 6 types of conductors, 80*0.2 multi-strand fine copper wire, and the cable insulation is made of flexible polyvinyl chloride, which makes the finished wire soft and wear-resistant, and can be customized to any length such as 10 meters, 20 meters, and 30 meters.
